IOS学习笔记(十二)之IOS开发之表视图(UITableView)的相关类,属性与表视图实现学习(二)

jerry IOS 2015年11月27日 收藏

   上一篇初步学习了一下表视图(UITableView)的基本概念内容(点击进入),今天就表视图的其他知识进行学习,并且实现表视图。

 (一)UITableView的相关类解析:

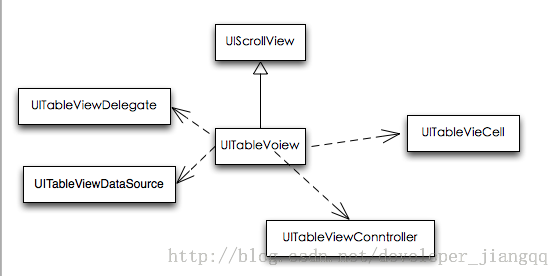

     首先我们来看张类的结构图:



   1:表视图(UITableView)是继承自UIScrollView,这样就可以使得我们的表视图可以实现上下的滚动。

   2:同时表视图(UITableView),还有两个委托①:UITableViewDelegate委托协议,一般我们用来处理表视图的基本样式(例如:单元格的高度等)还有去捕捉选中单元格的事件。②:UITableViewDataSource委托协议,必要要去实现该协议的数据源方法,来完成表视图的数据配置。

   3:UITableViewController:是表视图(UITableView)的控制器类。

   4:UItableViewCell:是单元格类.


(二):数据源协议和委托源协议介绍:

     1:UITableViewDataSource协议:我们去实现其中的方法,来完成我们的表视图的数据配置,从而来显示表视图。其中我们必须要去实现的两个方法如下:


//进行返回每个section(节)中单元格的数量
- (NSInteger)tableView:(UITableView *)tableView numberOfRowsInSection:(NSInteger)section;

// Row display. Implementers should *always* try to reuse cells by setting each cell's reuseIdentifier and querying for available reusable cells with dequeueReusableCellWithIdentifier:
// Cell gets various attributes set automatically based on table (separators) and data source (accessory views, editing controls)
// 为表视图中的单元格创建数据
- (UITableViewCell *)tableView:(UITableView *)tableView cellForRowAtIndexPath:(NSIndexPath *)indexPath;

  除了以上的两个必须实现的方法,还有一些以下的可选实现方法:



// 返回section(节)的个数
- (NSInteger)numberOfSectionsInTableView:(UITableView *)tableView;              // Default is 1 if not implemented
//返回section(节)头的标题
- (NSString *)tableView:(UITableView *)tableView titleForHeaderInSection:(NSInteger)section;    // fixed font style. use custom view (UILabel) if you want something different
// 返回section(节)尾的标题
- (NSString *)tableView:(UITableView *)tableView titleForFooterInSection:(NSInteger)section;
- (BOOL)tableView:(UITableView *)tableView canEditRowAtIndexPath:(NSIndexPath *)indexPath;
- (BOOL)tableView:(UITableView *)tableView canMoveRowAtIndexPath:(NSIndexPath *)indexPath;
- (NSArray *)sectionIndexTitlesForTableView:(UITableView *)tableView;                                                    // return list of section titles to display in section index view (e.g. "ABCD...Z#")
- (NSInteger)tableView:(UITableView *)tableView sectionForSectionIndexTitle:(NSString *)title atIndex:(NSInteger)index;
- (void)tableView:(UITableView *)tableView commitEditingStyle:(UITableViewCellEditingStyle)editingStyle forRowAtIndexPath:(NSIndexPath *)indexPath;
- (void)tableView:(UITableView *)tableView moveRowAtIndexPath:(NSIndexPath *)sourceIndexPath toIndexPath:(NSIndexPath *)destinationIndexPath;

     2:UITableViewDelegate:协议可以用来设定表视图中的节头与节尾 同时还可以去响应一些点击事件,主要的一些方法如下:



- (UIView *)tableView:(UITableView *)tableView viewForHeaderInSection:(NSInteger)section;   // custom view for header. will be adjusted to default or specified header height
- (UIView *)tableView:(UITableView *)tableView viewForFooterInSection:(NSInteger)section;   // custom view for footer. will be adjusted to default or specified footer height
- (NSIndexPath *)tableView:(UITableView *)tableView willSelectRowAtIndexPath:(NSIndexPath *)indexPath;
- (void)tableView:(UITableView *)tableView didSelectRowAtIndexPath:(NSIndexPath *)indexPath;

  更多方法可以去官网UITableView进行查询。

 (三) 表视图(UITableView)的一些常用方法和属性:

      1:常用属性:

          ①:@property(nonatomic) UITableViewCellSeparatorStyle separatorStyle;     默认为UITableViewCellSeparatorStyleSingleLine

          ②:@property(nonatomic,retain) UIColor               *separatorColor;    默认为:the standard separator gray

          ③:@property(nonatomic,retain) UIView *tableHeaderView;            头部视图

          ④:@property(nonatomic,retain) UIView *tableFooterView;      尾部视图

          ⑤:@property(nonatomic)          CGFloat                    rowHeight;            // 单元格高度

          ⑥:@property(nonatomic)          CGFloat                    sectionHeaderHeight;  // 头部行高

          ⑦:@property(nonatomic)          CGFloat                    sectionFooterHeight;    //尾部行高

          ⑧:@property(nonatomic,readwrite,retain) UIView *backgroundViewNS_AVAILABLE_IOS(3_2);

          ⑨:@property(nonatomic,readonly) UITableViewStyle           style;

      2:常用方法:

          ①:- (void)reloadData;                // reloads everything from scratch. redisplays visible rows. because we only keep info about visible rows, this is cheap. will adjust offset if table shrinks  刷新单元格的数据

         ②:- (void)reloadSectionIndexTitlesNS_AVAILABLE_IOS(3_0);  // reloads the index bar.

         ③:- (NSInteger)numberOfSections;   //返回节的数量

         ④:- (NSInteger)numberOfRowsInSection:(NSInteger)section;//返回每个节的单元格的数量

         ⑤:- (CGRect)rectForSection:(NSInteger)section;                                   // includes header, footer and all rows

         ⑥:- (CGRect)rectForHeaderInSection:(NSInteger)section;

         ⑦:- (CGRect)rectForFooterInSection:(NSInteger)section;

         ⑧:- (CGRect)rectForRowAtIndexPath:(NSIndexPath *)indexPath;

         ⑨:- (NSIndexPath *)indexPathForRowAtPoint:(CGPoint)point;                        // returns nil if point is outside table

         ⑩:- (NSIndexPath *)indexPathForCell:(UITableViewCell *)cell;        //返回指定单元格的NSIndexPath实例

        十一:- (NSArray *)indexPathsForRowsInRect:(CGRect)rect;            //返回指定范围的NSIndexPath实例数组

        十二:- (UITableViewCell *)cellForRowAtIndexPath:(NSIndexPath *)indexPath;           // returns nil if cell is not visible or index path is out of range     //返回指定NSIndexPath实例的单元格实例

        十三:- (NSArray *)visibleCells;  //返回可见的单元格的数组

        十四- (NSArray *)indexPathsForVisibleRows;  //返回可见单元格的NSIndexPath实例数组

        十五:- (UITableViewHeaderFooterView *)headerViewForSection:(NSInteger)sectionNS_AVAILABLE_IOS(6_0);

        十六:- (UITableViewHeaderFooterView *)footerViewForSection:(NSInteger)sectionNS_AVAILABLE_IOS(6_0);

        十七:- (void)scrollToRowAtIndexPath:(NSIndexPath *)indexPath atScrollPosition:(UITableViewScrollPosition)scrollPosition animated:(BOOL)animated;     //滑动到指定的位置,并且可以加上动画效果

        十八:- (void)scrollToNearestSelectedRowAtScrollPosition:(UITableViewScrollPosition)scrollPosition animated:(BOOL)animated;


(四)例子实现表格布局

      简单的来说:是以下几个步骤:1.配置数据源,2.实现数据源方法,3.设置代理方法。下面来看实例



//
//  ZTTRootViewController.m
//  UITableViewDemo1
//
//  Created by 江清清 on 14-3-19.
//  Copyright (c) 2014年 江清清<<a>http://www.0513.it/</a>中天科技软件技术股份有限公司>. All rights reserved.
//

#import "ZTTRootViewController.h"
#import "ZTTDetailsViewController.h"
#define  kDeviceHeight   [UIScreen mainScreen].bounds.size.height

@interface ZTTRootViewController ()

@end

@implementation ZTTRootViewController

- (id)initWithNibName:(NSString *)nibNameOrNil bundle:(NSBundle *)nibBundleOrNil
{
    self = [super initWithNibName:nibNameOrNil bundle:nibBundleOrNil];
    if (self) {
        self.title=@"UITableView Style";
    }
    return self;
}
-(void)loadView{
    UIView *view=[[UIView alloc]initWithFrame:[UIScreen mainScreen].applicationFrame];
    //[view setBackgroundColor:[UIColor redColor]];
    self.view=view;
    [view release];

    //开始进行配置数据源
    self.listArray=@[@"UITableViewStylePlain",@"UITableViewStyleGrouped"];
    _tableView=[[UITableView alloc]initWithFrame:CGRectMake(0, 0, 320,kDeviceHeight-20-44) style:UITableViewStylePlain];
    //实现数据源方法
    [_tableView setDataSource:self];
    //设置点击事件 代理方法
    [_tableView setDelegate:self];
    [self.view addSubview:_tableView];

}
- (void)viewDidLoad
{
    [super viewDidLoad];
	// Do any additional setup after loading the view.
}

- (void)didReceiveMemoryWarning
{
    [super didReceiveMemoryWarning];
    // Dispose of any resources that can be recreated.
}
#pragma mark- tableview date source
/*
 * 一个selection中又多少个单元格
 */
- (NSInteger)tableView:(UITableView *)tableView numberOfRowsInSection:(NSInteger)section
{
    return  [_listArray count];
}

// indexPath
//创建单元格
- (UITableViewCell *)tableView:(UITableView *)tableView cellForRowAtIndexPath:(NSIndexPath *)indexPath{
    static NSString *cellInditifier=nil;
    // 创建单元格对象
    UITableViewCell *cell=[tableView dequeueReusableCellWithIdentifier:cellInditifier];
    if(cell ==nil){
        cell=[[[UITableViewCell alloc]initWithStyle:UITableViewCellStyleDefault reuseIdentifier:cellInditifier]autorelease];
    }
    NSString *text=[self.listArray objectAtIndex:indexPath.row];
    cell.textLabel.text=text;
    return  cell;
}



// 表视图中有几个selection
- (NSInteger)numberOfSectionsInTableView:(UITableView *)tableView{
    return  1;
}


// 选中单元格的方法
- (void)tableView:(UITableView *)tableView didSelectRowAtIndexPath:(NSIndexPath *)indexPath{
    NSLog(@"didSelect");
    //进行跳转到相应的页面
    ZTTDetailsViewController *detailsVC=[[ZTTDetailsViewController alloc]init];
    detailsVC.isPlain=indexPath.row==0?YES:NO;
    [self.navigationController pushViewController:detailsVC animated:YES];
    [detailsVC release];
}
-(void)dealloc{
    [_tableView release];
    _tableView=nil;
    [super dealloc];
}
@end

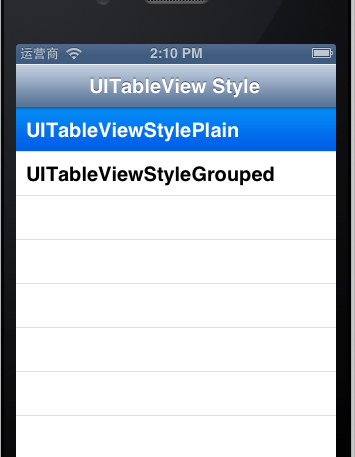

运行截图如下:



   3:上面的代码例子是一般的表格,如果我们要表格中加入表头(header)和表尾(footer)话,我们需要实现以下两个数据源方法:


- (NSString *)tableView:(UITableView *)tableView titleForHeaderInSection:(NSInteger)section;    // fixed font style. use custom view (UILabel) if you want something different
- (NSString *)tableView:(UITableView *)tableView titleForFooterInSection:(NSInteger)section;

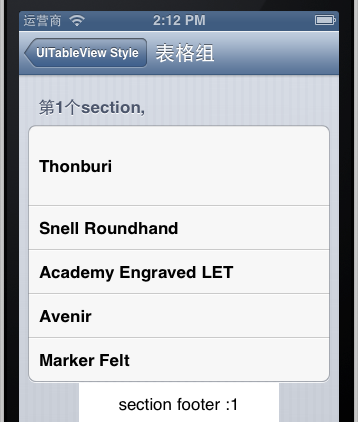

     运行截图如下:
