【Android 界面效果33】二级listview列表

十度 Android 2015年12月02日 收藏

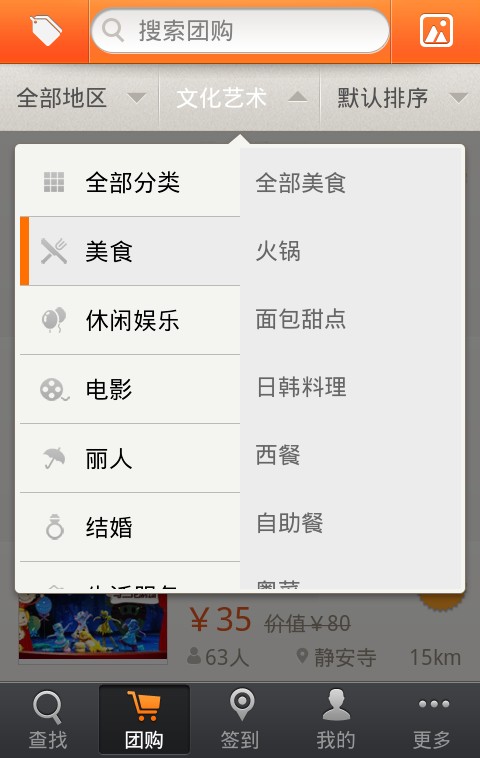

       今天来实现以下大众点评客户端的横向listview二级列表，先看一下样式。

   这种横向的listview二级列表在手机软件上还不太常见，但是使用过平板的都应该知道，在平板上市比较常见的。可能是因为平板屏幕比较大，而且也能展现更多的内容。

    下面来看一下我的实现步骤。

    首先自定义一个listview，代码如下：



[html] view plaincopy

  1. public class MyListView extends ListView implements Runnable {
  2.     private float mLastDownY = 0f;
  3.     private int mDistance = 0;
  4.     private int mStep = 10;
  5.     private boolean mPositive = false;
  6.
  7.
  8.     public MyListView (Context context, AttributeSet attrs) {
  9.           super(context, attrs);
  10.     }
  11.
  12.     public MyListView (Context context, AttributeSet attrs, int defStyle) {
  13.           super(context, attrs, defStyle);
  14.     }
  15.
  16.     public MyListView (Context context) {
  17.           super(context);
  18.     }
  19.
  20.     @Override
  21.     public boolean onTouchEvent(MotionEvent event) {
  22.          switch (event.getAction()) {
  23.               case MotionEvent.ACTION_DOWN:
  24.                    if (mLastDownY == 0f && mDistance == 0) {
  25.                          mLastDownY = event.getY();
  26.                    return true;
  27.               }
  28.               break;
  29.
  30.     case MotionEvent.ACTION_CANCEL:
  31.            break;
  32.
  33.     case MotionEvent.ACTION_UP:
  34.           if (mDistance != 0) {
  35.            mStep = 1;
  36.            mPositive = (mDistance >= 0);
  37.            this.post(this);
  38.            return true;
  39.         }
  40.         mLastDownY = 0f;
  41.         mDistance = 0;
  42.         break;
  43.
  44.     case MotionEvent.ACTION_MOVE:
  45.         if (mLastDownY != 0f) {
  46.               mDistance = (int) (mLastDownY - event.getY());
  47.               if ((mDistance < 0 && getFirstVisiblePosition() == 0 && getChildAt(0).getTop() == 0) || (mDistance > 0 && getLastVisiblePosition() == getCount() - 1)) {
  48.                    mDistance /= 2;
  49.                    scrollTo(0, mDistance);
  50.                    return true;
  51.                }
  52.         }
  53.         mDistance = 0;
  54.         break;
  55.         }
  56.         return super.onTouchEvent(event);
  57.     }
  58.
  59.     public void run() {
  60.           mDistance += mDistance > 0 ? -mStep : mStep;
  61.           scrollTo(0, mDistance);
  62.           if ((mPositive && mDistance <= 0) || (!mPositive && mDistance >= 0)) {
  63.                 scrollTo(0, 0);
  64.                 mDistance = 0;
  65.                 mLastDownY = 0f;
  66.                 return;
  67.            }
  68.           mStep += 1;
  69.           this.postDelayed(this, 10);
  70.      }
  71. }

    然后看一下xml的布局：





[html] view plaincopy

  1. <LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
  2.     xmlns:tools="http://schemas.android.com/tools"
  3.     android:orientation="horizontal"
  4.     android:layout_width="fill_parent"
  5.     android:layout_height="fill_parent" >
  6.
  7.     <com.example.multilistview.MyListView
  8.                 android:id="@+id/listView"
  9.                 android:layout_width="wrap_content"
  10.                 android:layout_height="wrap_content"
  11.                 android:layout_weight="1"
  12.                 android:choiceMode="singleChoice"
  13.                 android:scrollbars="none"
  14.                 android:divider="@drawable/listitem_divide"
  15.                 android:listSelector="#00000000"
  16.                 android:background="#e4e3de"
  17.                 >
  18.             </com.example.multilistview.MyListView>
  19.
  20.              <com.example.multilistview.MyListView
  21.                 android:id="@+id/subListView"
  22.                 android:layout_width="wrap_content"
  23.                 android:layout_height="wrap_content"
  24.                 android:layout_weight="1"
  25.                 android:background="#e4e3de"
  26.                  >
  27.
  28.                 </com.example.multilistview.MyListView>
  29.
  30.
  31. </LinearLayout>


     两个自定义的listview  横向布局，然后是父listview的适配器





[html] view plaincopy

  1. public class MyAdapter extends BaseAdapter {
  2.
  3.     Context context;
  4.     LayoutInflater inflater;
  5.     String [] foods;
  6.     int last_item;
  7.     int [] images;
  8.     private int selectedPosition = -1;
  9.     public MyAdapter(Context context,String [] foods,int[] images){
  10.         this.context = context;
  11.         this.foods = foods;
  12.         this.images = images;
  13.         inflater=LayoutInflater.from(context);
  14.     }
  15.
  16.     @Override
  17.     public int getCount() {
  18.         // TODO Auto-generated method stub
  19.         return foods.length;
  20.     }
  21.
  22.     @Override
  23.     public Object getItem(int position) {
  24.         // TODO Auto-generated method stub
  25.         return position;
  26.     }
  27.
  28.     @Override
  29.     public long getItemId(int position) {
  30.         // TODO Auto-generated method stub
  31.         return position;
  32.     }
  33.
  34.     @Override
  35.     public View getView(int position, View convertView, ViewGroup parent) {
  36.         // TODO Auto-generated method stub
  37.         ViewHolder  holder = null;
  38.         if(convertView==null){
  39.         convertView = inflater.inflate(R.layout.mylist_item, null);
  40.         holder = new ViewHolder();
  41.         holder.textView =(TextView)convertView.findViewById(R.id.textview);
  42.         holder.imageView =(ImageView)convertView.findViewById(R.id.imageview);
  43.         holder.layout=(LinearLayout)convertView.findViewById(R.id.colorlayout);
  44.         convertView.setTag(holder);
  45.         }
  46.         else{
  47.         holder=(ViewHolder)convertView.getTag();
  48.         }
  49.         // 设置选中效果
  50.          if(selectedPosition == position)
  51.         {
  52.              holder.textView.setTextColor(Color.BLUE);
  53.
  54.
  55.          holder.layout.setBackgroundColor(Color.LTGRAY);
  56.        } else {
  57.            holder.textView.setTextColor(Color.WHITE);
  58.         holder.layout.setBackgroundColor(Color.TRANSPARENT);
  59.          }
  60.
  61.
  62.         holder.textView.setText(foods[position]);
  63.         holder.textView.setTextColor(Color.BLACK);
  64.         holder.imageView.setBackgroundResource(images[position]);
  65.
  66.         return convertView;
  67.     }
  68.
  69.     public static class ViewHolder{
  70.         public TextView textView;
  71.         public ImageView  imageView;
  72.         public LinearLayout layout;
  73.     }
  74.
  75.     public void setSelectedPosition(int position) {
  76.        selectedPosition = position;
  77.     }
  78.
  79. }

  对应的 item布局：





[html] view plaincopy

  1. <?xml version="1.0" encoding="utf-8"?>
  2. <LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
  3.     android:id="@+id/colorlayout"
  4.     android:layout_width="fill_parent"
  5.     android:layout_height="fill_parent" >
  6.
  7.     <ImageView
  8.     android:id="@+id/imageview"
  9.     android:layout_width="wrap_content"
  10.     android:layout_height="wrap_content"
  11.     android:layout_marginLeft="10dip"
  12.     android:layout_marginTop="5dip"
  13.     />
  14.     <TextView
  15.     android:id="@+id/textview"
  16.     android:layout_width="wrap_content"
  17.     android:layout_height="wrap_content"
  18.     android:text=""
  19.     android:textSize="16dip"
  20.     android:layout_marginTop="8dip"
  21.     android:layout_marginLeft="8dip"
  22.     android:layout_marginBottom="8dip"/>
  23.    <!--  android:background="@drawable/selector"  自定义listview 样式-->
  24. </LinearLayout>


    然后是子适配器代码：





[html] view plaincopy

  1. public class SubAdapter extends BaseAdapter {
  2.
  3.     Context context;
  4.     LayoutInflater layoutInflater;
  5.     String[][] cities;
  6.     public int foodpoition;
  7.
  8.     public SubAdapter(Context context, String[][] cities,int position) {
  9.         this.context = context;
  10.         this.cities = cities;
  11.         layoutInflater = (LayoutInflater) context.getSystemService(Context.LAYOUT_INFLATER_SERVICE);
  12.         this.foodpoition = position;
  13.     }
  14.
  15.     @Override
  16.     public int getCount() {
  17.         // TODO Auto-generated method stub
  18.         return cities.length;
  19.     }
  20.
  21.     @Override
  22.     public Object getItem(int position) {
  23.         // TODO Auto-generated method stub
  24.         return getItem(position);
  25.     }
  26.
  27.     @Override
  28.     public long getItemId(int position) {
  29.         // TODO Auto-generated method stub
  30.         return position;
  31.     }
  32.
  33.     @Override
  34.     public View getView(int position, View convertView, ViewGroup parent) {
  35.         // TODO Auto-generated method stub
  36.         ViewHolder viewHolder = null;
  37.         final int location=position;
  38.         if (convertView == null) {
  39.             convertView = layoutInflater.inflate(R.layout.sublist_item, null);
  40.             viewHolder = new ViewHolder();
  41.             viewHolder.textView = (TextView) convertView
  42.                     .findViewById(R.id.textview1);
  43.             convertView.setTag(viewHolder);
  44.         } else {
  45.             viewHolder = (ViewHolder) convertView.getTag();
  46.         }
  47.         viewHolder.textView.setText(cities[foodpoition][position]);
  48.         viewHolder.textView.setTextColor(Color.BLACK);
  49.
  50.         return convertView;
  51.     }
  52.
  53.     public static class ViewHolder {
  54.         public TextView textView;
  55.     }
  56.
  57. }


   对应的xml布局：





[html] view plaincopy

  1. <?xml version="1.0" encoding="utf-8"?>
  2. <LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
  3.     android:layout_width="wrap_content"
  4.     android:layout_height="wrap_content"
  5.
  6.     >
  7.      <TextView
  8.     android:id="@+id/textview1"
  9.     android:layout_width="wrap_content"
  10.     android:layout_height="wrap_content"
  11.     android:text="aaaaa"
  12.     android:textSize="16dip"
  13.     android:layout_marginTop="10dip"
  14.     android:layout_marginLeft="8dip"
  15.     android:layout_marginBottom="8dip"/>
  16. </LinearLayout>


     最后看下主activity的实现代码





[html] view plaincopy

  1. public class MainActivity extends Activity {
  2.
  3.     private MyListView listView;
  4.     private MyListView subListView;
  5.     private MyAdapter myAdapter;
  6.     private SubAdapter subAdapter;
  7.
  8.     String cities[][] = new String[][] {
  9.             new String[] {"全部美食", "本帮江浙菜", "川菜", "粤菜", "湘菜","东北菜","台湾菜","新疆/清真","素菜","火锅","自助餐","小吃快餐","日本","韩国料理",
  10.             "东南亚菜","西餐","面包甜点","其他"},
  11.             new String[] {"全部休闲娱乐","咖啡厅","酒吧","茶馆","KTV","电影院","游乐游艺","公园","景点/郊游","洗浴","足浴按摩","文化艺术",
  12.                 "DIY手工坊","桌球馆","桌面游戏","更多休闲娱乐"},
  13.             new String[] {"全部购物", "综合商场", "服饰鞋包", "运动户外","珠宝饰品","化妆品","数码家电","亲子购物","家居建材"
  14.                 ,"书店","书店","眼镜店","特色集市","更多购物场所","食品茶酒","超市/便利店","药店"},
  15.             new String[] {"全部休闲娱乐","咖啡厅","酒吧","茶馆","KTV","电影院","游乐游艺","公园","景点/郊游","洗浴","足浴按摩","文化艺术",
  16.                     "DIY手工坊","桌球馆","桌面游戏","更多休闲娱乐"},
  17.             new String[] {"全","咖啡厅","酒吧","茶馆","KTV","游乐游艺","公园","景点/郊游","洗浴","足浴按摩","文化艺术",
  18.                     "DIY手工坊","桌球馆","桌面游戏","更多休闲娱乐"},
  19.             new String[] {"全部","咖啡厅","酒吧","茶馆","电影院","游乐游艺","公园","景点/郊游","洗浴","足浴按摩","文化艺术",
  20.                     "DIY手工坊","桌球馆","桌面游戏","更多休闲娱乐"},
  21.             new String[] {"全部休","咖啡厅","酒吧","茶馆","KTV","电影院","游乐游艺","公园","景点/郊游","洗浴","足浴按摩","文化艺术",
  22.                     "DIY手工坊","桌球馆","桌面游戏","更多休闲娱乐"},
  23.             new String[] {"全部休闲","咖啡厅","酒吧","茶馆","KTV","电影院","游乐游艺","公园","景点/郊游","洗浴","足浴按摩","文化艺术",
  24.                     "DIY手工坊","桌球馆","桌面游戏","更多休闲娱乐"},
  25.             new String[] {"全部休闲娱","咖啡厅","酒吧","茶馆","KTV","电影院","游乐游艺","公园","景点/郊游","洗浴","足浴按摩","文化艺术",
  26.                     "DIY手工坊","桌球馆","桌面游戏"},
  27.             new String[] {"全部休闲娱乐","咖啡厅","酒吧","茶馆","KTV","电影院","游乐游艺","公园","景点/郊游","洗浴","足浴按摩","文化艺术",
  28.                     "DIY手工坊","桌球馆","桌面游戏","更多休闲娱乐"},
  29.             new String[] {"全部休闲aaa","咖啡厅","酒吧","茶馆","KTV","电影院","游乐游艺","公园","景点/郊游","洗浴","足浴按摩","文化艺术",
  30.                     "DIY手工坊","桌球馆","桌面游戏"},
  31.             };
  32.         String foods[] =new String []{"全部频道","美食","休闲娱乐","购物","酒店","丽人","运动健身","结婚","亲子","爱车","生活服务"};
  33.         int images[] = new int[]{R.drawable.ic_category_0,R.drawable.ic_category_10,R.drawable.ic_category_30,R.drawable.ic_category_20
  34.                 ,R.drawable.ic_category_60,R.drawable.ic_category_50,R.drawable.ic_category_45,R.drawable.ic_category_50,R.drawable.ic_category_70,
  35.                 R.drawable.ic_category_65,R.drawable.ic_category_80};
  36.
  37.     @Override
  38.     public void onCreate(Bundle savedInstanceState) {
  39.         super.onCreate(savedInstanceState);
  40.         setContentView(R.layout.activity_main);
  41.
  42.         init();
  43.         myAdapter=new MyAdapter(getApplicationContext(), foods, images);
  44.         listView.setAdapter(myAdapter);
  45.
  46.         selectDefult();
  47.
  48.         listView.setOnItemClickListener(new OnItemClickListener() {
  49.
  50.             @Override
  51.             public void onItemClick(AdapterView<?> arg0, View arg1, int position,
  52.                     long arg3) {
  53.                 // TODO Auto-generated method stub
  54.                 final int location=position;
  55.                 myAdapter.setSelectedPosition(position);
  56.                 myAdapter.notifyDataSetInvalidated();
  57.                 subAdapter=new SubAdapter(getApplicationContext(), cities, position);
  58.                 subListView.setAdapter(subAdapter);
  59.                 subListView.setOnItemClickListener(new OnItemClickListener() {
  60.
  61.                     @Override
  62.                     public void onItemClick(AdapterView<?> arg0, View arg1,
  63.                             int position, long arg3) {
  64.                         // TODO Auto-generated method stub
  65.                         Toast.makeText(getApplicationContext(), cities[location][position], Toast.LENGTH_SHORT).show();
  66.                     }
  67.                 });
  68.             }
  69.         });
  70.
  71.     }
  72.    private void init(){
  73.        listView=(MyListView) findViewById(R.id.listView);
  74.        subListView=(MyListView) findViewById(R.id.subListView);
  75.    }
  76.
  77.    private void selectDefult(){
  78.        final int location=0;
  79.             myAdapter.setSelectedPosition(0);
  80.             myAdapter.notifyDataSetInvalidated();
  81.             subAdapter=new SubAdapter(getApplicationContext(), cities, 0);
  82.             subListView.setAdapter(subAdapter);
  83.             subListView.setOnItemClickListener(new OnItemClickListener() {
  84.
  85.                 @Override
  86.                 public void onItemClick(AdapterView<?> arg0, View arg1,
  87.                         int position, long arg3) {
  88.                     // TODO Auto-generated method stub
  89.                     Toast.makeText(getApplicationContext(), cities[location][position], Toast.LENGTH_SHORT).show();
  90.                 }
  91.             });
  92.    }
  93.
  94. }

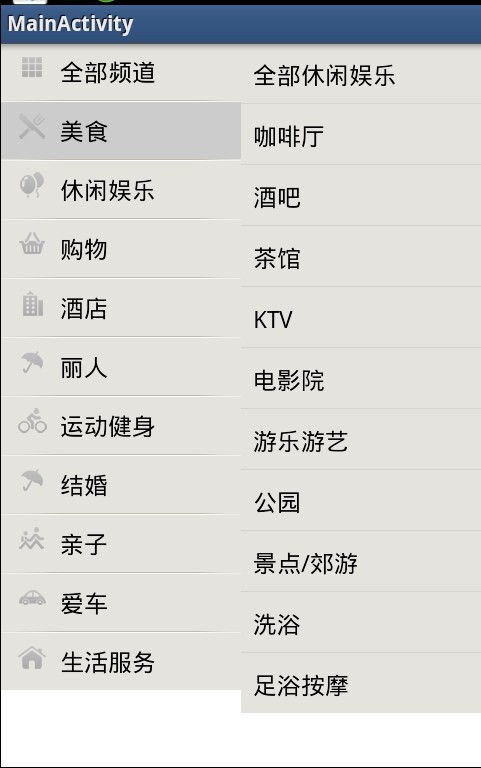

        默认我选中了第0个，下面看一下运行效果：





     代码下载地址：点击打开链接



dd
推荐文章
最新文章
基于ThinkPHP5开发的后台整合系统

基于ThinkPHP5开发的后台整合系统

ThinkPHP5开发的电脑端和手机端商城购物系统（含支付）

ThinkPHP5开发的电脑端和手机端商城购物系统（含支付）

Yii2和aceAdmin 开发的后台管理系统

Yii2和aceAdmin 开发的后台管理系统

Yii2打造RBAC后台通用权限的管理系统

Yii2打造RBAC后台通用权限的管理系统

最新Yii2+AdminLTE开发经典内容管理系统

最新Yii2+AdminLTE开发经典内容管理系统

Yii2 开发的经典博客系统

Yii2 开发的经典博客系统

Yii2 打造经典CMS管理系统

Yii2 打造经典CMS管理系统

Yii1 打造网上商城购物系统

Yii1 打造网上商城购物系统
